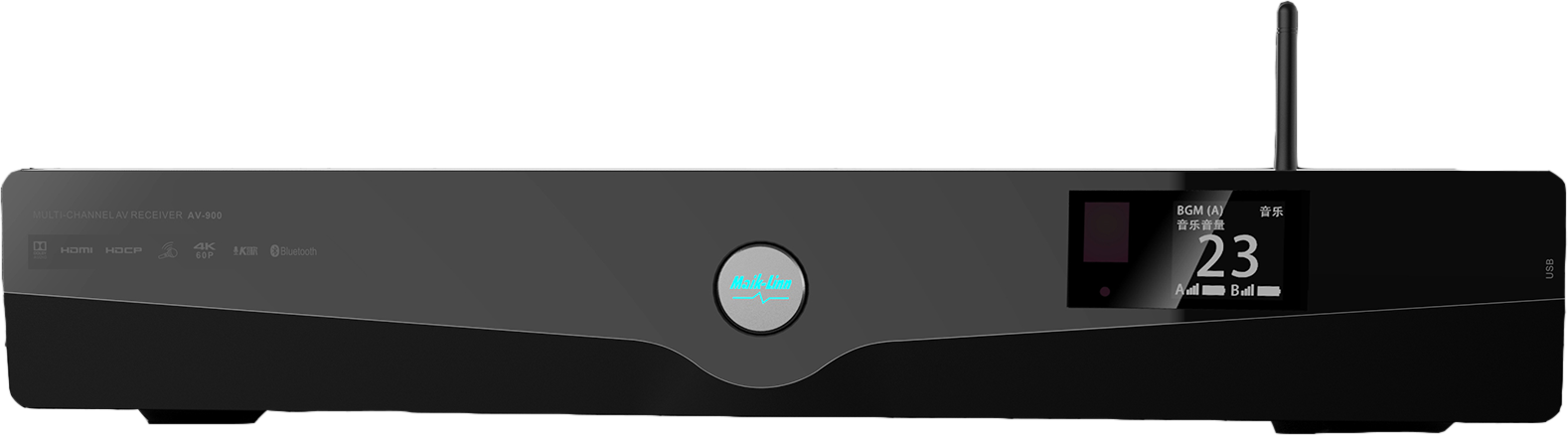

AV900
independently drives diverse speaker models, supports certified Dolby Atmos and DTS hardware decoding, and delivers high-fidelity karaoke. Integrated with smart home ecosystems and voice control, it synergizes with MK-3 and UM-1 to establish a seamless closed-loop control system
Features
Macken-Lin AV amplifier Embedded with Snail Power's 4th-generation acoustic algorithm,
independently drives diverse speaker models, supports certified Dolby Atmos and DTS hardware decoding, and delivers high-fidelity karaoke. Integrated with smart home ecosystems and voice control, it synergizes with MK-3 and UM-1 to establish a seamless closed-loop control system
Parameter
| Specification |
|
|
Number of Channels |
7 |
|
Output Power |
100W (per channel, dynamic) |
|
Frequency Response |
20Hz ~ 20kHz (0 ~ -2dB) |
|
Distortion |
< 0.03% |
|
Noise |
< -65dBu |
|
Signal-to-Noise Ratio |
≥ 93dB |
|
Channel Isolation |
> 75dB |
|
Input Sensitivity |
0.775 Vrms (0 dBu) |
|
Gain |
28.2dB |
|
Power - on Delay |
10 ~ 15 seconds |
|
Cooling Method |
Variable - speed fan, air flows from front to rear |
|
Power Requirement |
200 - 240VAC, 50Hz |
|
Net Weight |
7.0KG |
|
Dimensions |
W430mm * D270mm * H68mm |
